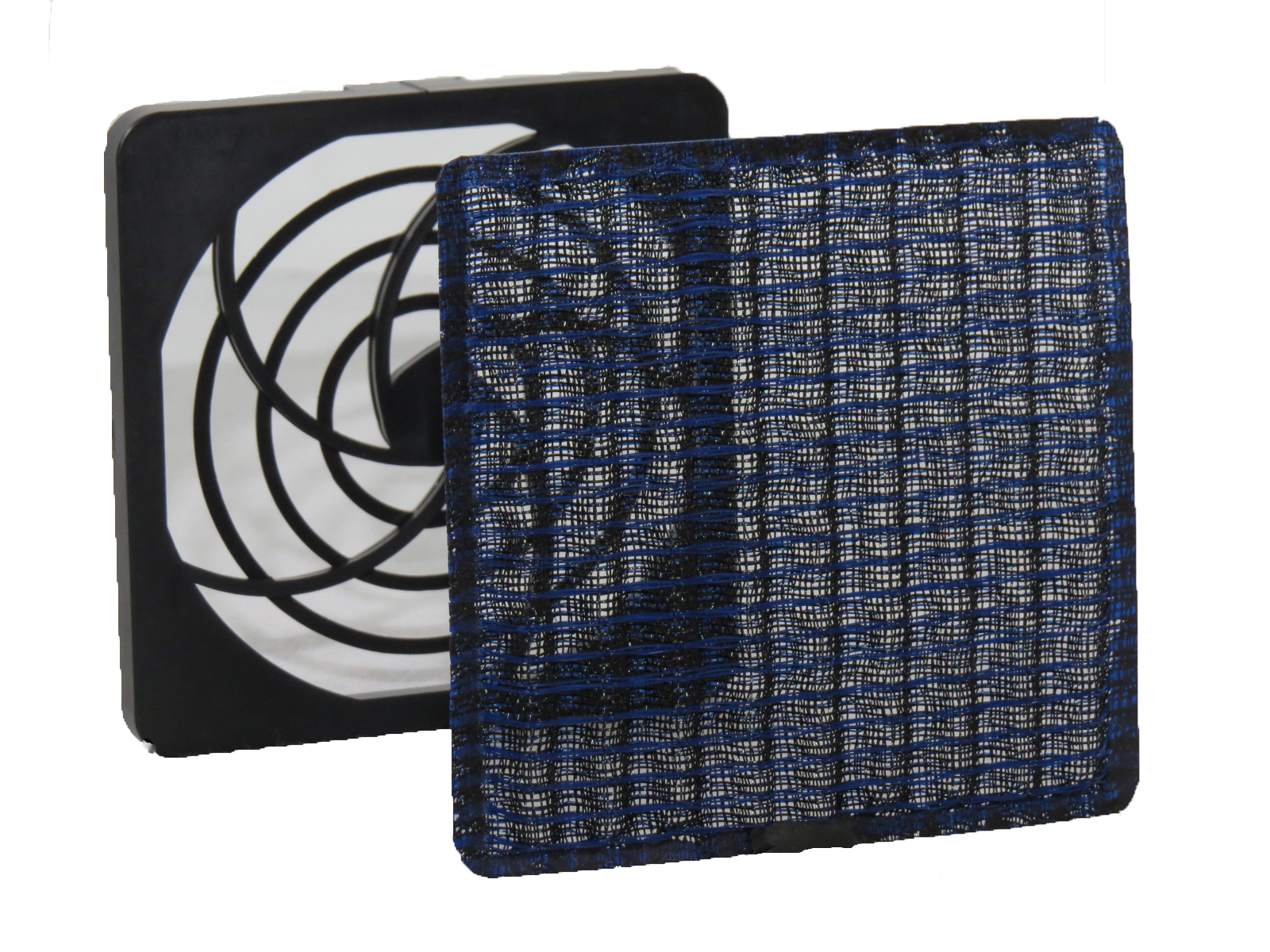

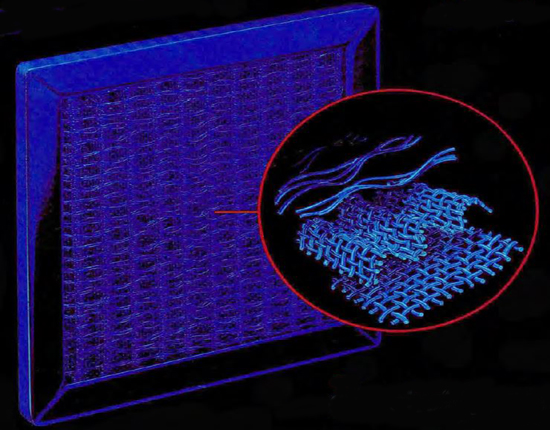

Extended Surface media, characterized by its pleated weave construction, offers the lowest possible resistance to air flow. The pleated weave design features low resistance to air flow with the ability to capture airborne dust. Lightweight construction yet durable and very easy to clean. The ES Series is the ideal choice for equipment and enclosures requiring permanent, cleanable air filters.
Recommended for fan enclosures in the medical, electronics, industrial, lighting, telecommunications and military electronics industries.
Please request a prototype or sample today! Contact Us
Features:
Permanent
Custom made to any size
Cleanable
One direction air flow
Lightweight
With or without frame
Media Specifications:
Polypropylene, pleated weave construction
.188” (4.77mm) thickness (approximately)
Black/blue color
Maximum operating temperature 200° F (93.3° C)
Frame Specifications:
High impact ABS plastic
.25” (6.35mm)
.44” (11.18mm)
Available in black
Frameless filters available
Tolerances:
Framed Filters
+/- .03” (.76mm) L x W
+/- .03” (.26mm) thickness
Frameless Filters
+/- .01” (.26mm) L x W
+/- .03” (.76mm) thickness
Options:
Drill holes
Pull tab
Hook and loop
Frameless filters can be die cut into a variety of shapes
Standards:
UL 900
Literature:
| Filter Performance Data | ||
| Model | Average Synthetic Dust | Initial Resistance * |
| ES | 58% | 0.02 |
| * inches water gauge | ||
| Tests performed to ASHRAE Air Filter test Standard 52-76 at 300 FPM | ||
