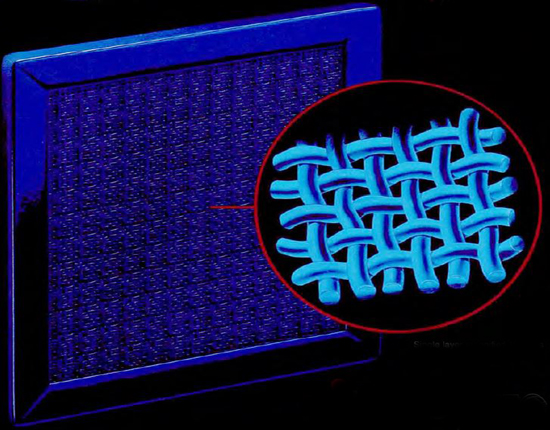

Multi-Layer style media offers the user a choice of filtering capabilities. This filter features a low pressure drop combined with the ability to capture airborne dust. Lightweight construction yet durable and very easy to clean. Two direction airflow makes this simple for the end-user. The ML Series is the ideal choice for equipment and enclosures requiring permanent, cleanable air filters.
Recommended for fan enclosures in the medical, electronics, industrial, lighting, telecommunications and military electronics industries.
Please request a prototype or sample today! Contact Us
Features:
Permanent
Custom made to any size
Cleanable
Two direction air flow
Lightweight
With or without frame

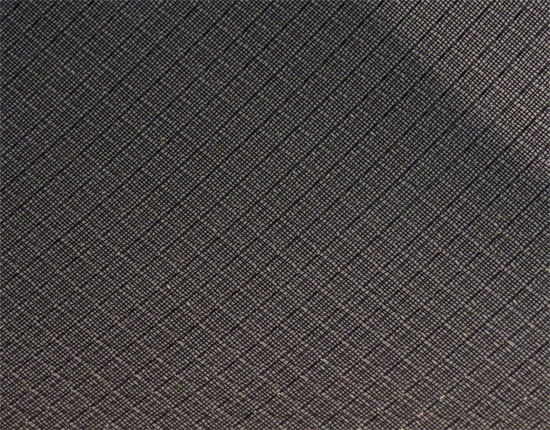

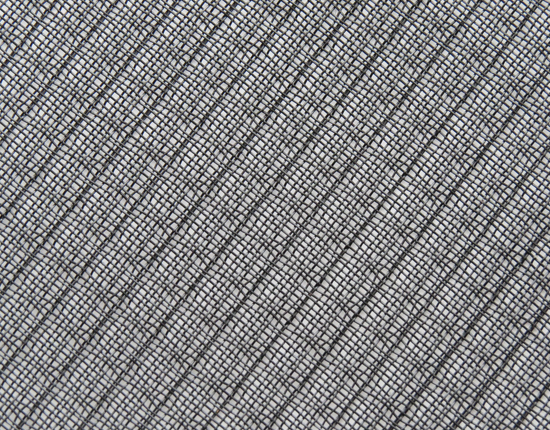

Media Specifications:
12 mil polypropylene, honeycomb weave
.030” (.76mm) thickness per layer (approximately)
Available in black (UV resistant) or white
Maximum operating temperature 200° F (93.3° C)

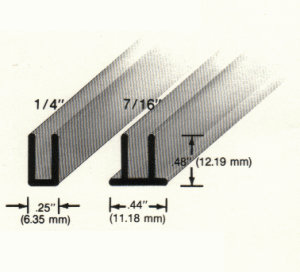

Frame Specifications:
High impact ABS plastic
.25” (6.35mm)
.44” (11.18mm)
Available in black
Frameless filters available
Tolerances:
Framed Filters
+/- .03” (.76mm) L x W
+/- .03” (.26mm) thickness
Frameless Filters
+/- .01” (.26mm) L x W
Options:
Drill holes
Pull tab
Hook and loop
Frameless filters can be die cut into a variety of shapes
Standards:
UL 900
Literature:
| Filter Performance Data | ||
| Model | Average Synthetic Dust | Initial Resistance * |
| ML-1 | Lint filter | N/A |
| ML-2 | 55% arrestance | 0.05 |
| ML-3 | 62% arrestance | 0.06 |
| ML-4 | 66% arrestance | 0.10 |
| * inches water gauge | ||
| Tests performed to ASHRAE Air Filter test Standard 52-76 at 300 FPM | ||
