ElectroMaze Model LF-4 electrostatic air filter is the ideal combination of low resistance and filtering arrestance. It is designed specifically for building heating and air conditioning systems.

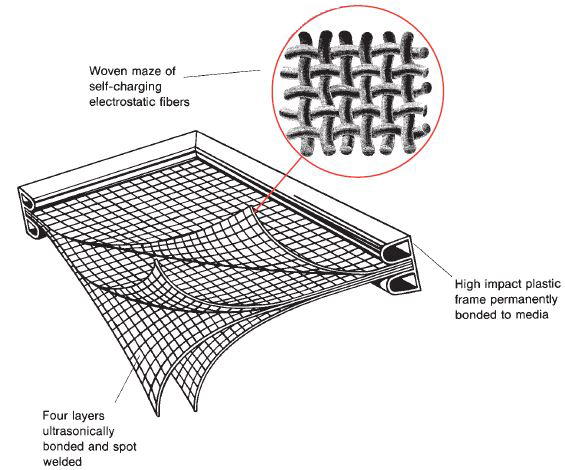

Each filter is manufactured using four layers of woven white polypropylene media. The layers are ultrasonically bonded the spot welded for security. A high impact ABS plastic frame is wrapped around the media then finished with an ultrasonic bond for strength. The filter is extremely lightweight yet durable enough for your most demanding application.

  • Arrestance: 70%
  • Resistance: .12 in. W.G. @ 300 FPM
  • Final Resistance: 1.00 in. W.G. @ 300 FPM
  • Maximum operating temperature: 200°F
  • Available in 20 standard sizes (1” frame) and 6 standard sizes (2” frame)
  • Custom sizes are easily manufactured
  • Lifetime warranty
  • Available in black for UV applications
  • Made in the USA

HVAC filter Washable filter Best filter

Once installed, you and your customer will appreciate how the air flows easily through the filter. As dust particles in the air move through the filter, it creates friction or the electrostatic charge. The dust is trapped in the maze of woven media. Simply rinse or vacuum the filter to release the dust.
